McDonald's - M44 Master Series 34" Open Burner Ranges

M44 Master Series 34" Open Burner Ranges

Heavy-Duty Range with 4 Open Burners

Available with a standard oven, storage cabinet base, or as a modular top.

Ovens – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Open Burners – Two-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

M44R Master Series 34" Open Burner Range with Standard Oven

Oven – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Open Burners – Four 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	440 lb 199.6 kg
Power Output	180000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

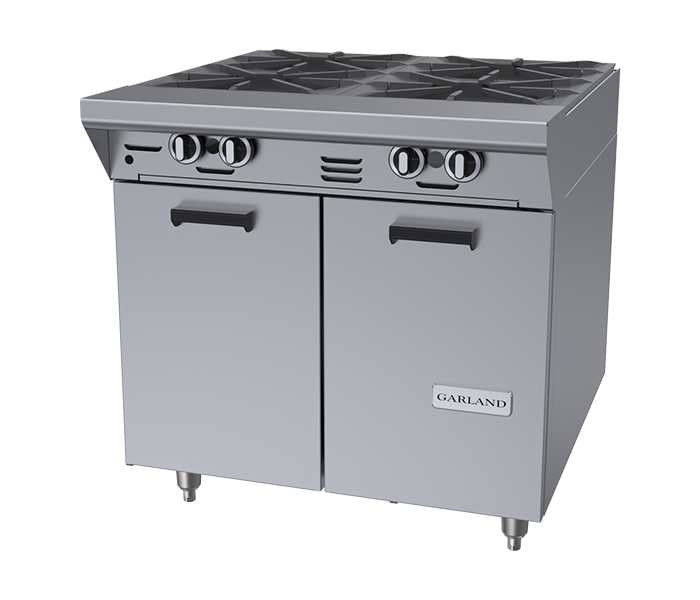

M44S Master Series 34" Open Burner Range with Storage Cabinet

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Open Burners – Four 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	lb 340 kg
Power Output	140000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

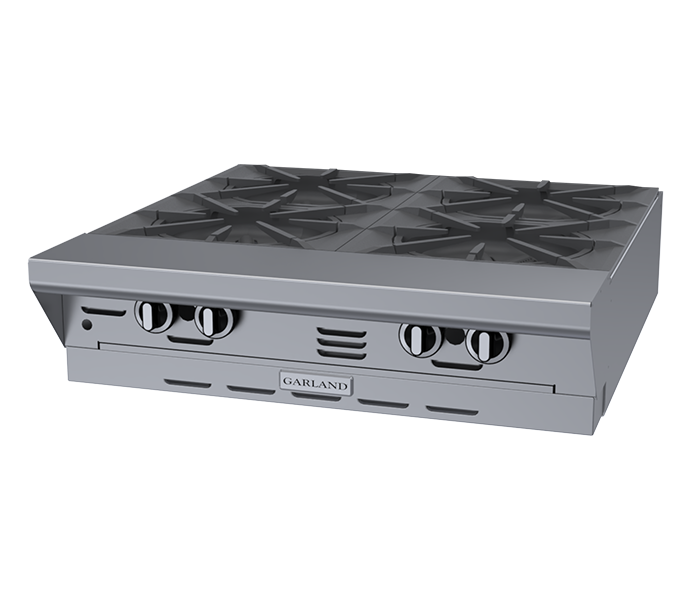

M44T Master Series 34" Open Burner Modular Top Range

Open Burners – Four 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

Stainless steel stand available, sold separately.

W x D x H	34" x 38" x 91/2" 86.4 cm x 96.5 cm x 24.1 cm
Weight	250 lb 113.4 kg
Power Output	140000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications
