McDonald's - Delfield Undercounter Refrigeration

Exterior Bottom
The exterior bottom is a heavy-gauge galvanized metal and the exterior ends are heavy gauge stainless steel.

Base interior
The interior is a one-piece thermoformed ABS pastic material, with integrated shelf supports. The ABS interior is backed by a limited lifetime warranty. The base is insulated with high-density foamed-in-place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Base also comes with 2 adjustable epoxy-coated wire shelves installed.

Doors
The door has a heavy-gauge stainless steel exterior, with a thermoformed ABS plastic interior liner and is fully insulated with foamed-in-place polyurethane. The door handles are recessed black ABS.

Electrical
Electrical connections shall be 115 volt, 60 Hertz, single phase. Unit shall have a 7' (2.1m) long electrical cord and NEMA 5-15P plug. Cord and plug shall be located on rear of cabinet, 16" (40.6cm) above floor, 5ÂÂ” from the left side.

Legs
Equipment is shipped with loose 6" (15.2cm) high metal legs with black enamel finish unless mounting is specified on original sales order. Exterior top shall be one-piece, heavy-gauge stainless steel with front edge turned down to form nosing and rear edge turned down.

Refrigeration System
Refrigeration system shall use HFC-404A refrigerant. Compressor shall be 1/5 h.p., with condenser coil and hot gas condensate evaporator mounted on rear of cabinet. Evaporator coil and temperature control shall be mounted on the interior rear wall of the cabinet. Refrigerant flow shall be controlled by a capillary tube. Cabinet shall maintain 36°F to 40°F (2°C to 4°C) interior cabinet temperature.

	Stainless steel back
	Plastic laminate on front
	Additional shelf
	Staninless steel single-tier overshelf
	2" diameter (2.5" ride height) casters
	5" diameter (6" ride height) casters
	Model 409 stacking collar
	Door lock
	220 volt, 50 hertz electrical system
	Staninless steel single-tier overshelf

Delfield Undercounter Refrigeration

406

Stainless steel back

Plastic laminate on front

Additional shelf

Staninless steel single-tier overshelf

2" diameter (2.5" ride height) casters

5" diameter (6" ride height) casters

Model 409 stacking collar

Door lock

220 volt, 50 hertz electrical system

Staninless steel single-tier overshelf

Related Products

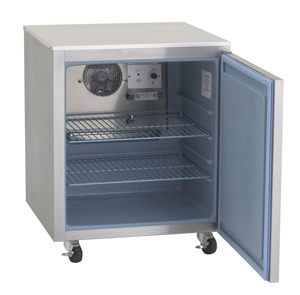

407P Undercounter Freezer

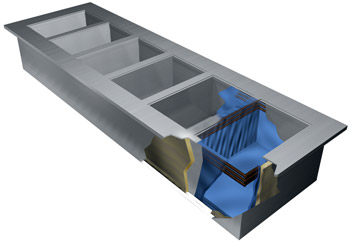

8100-EFP

8100-EFNP

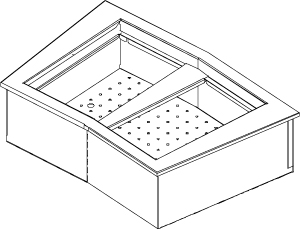

N8000-R

N8100BP

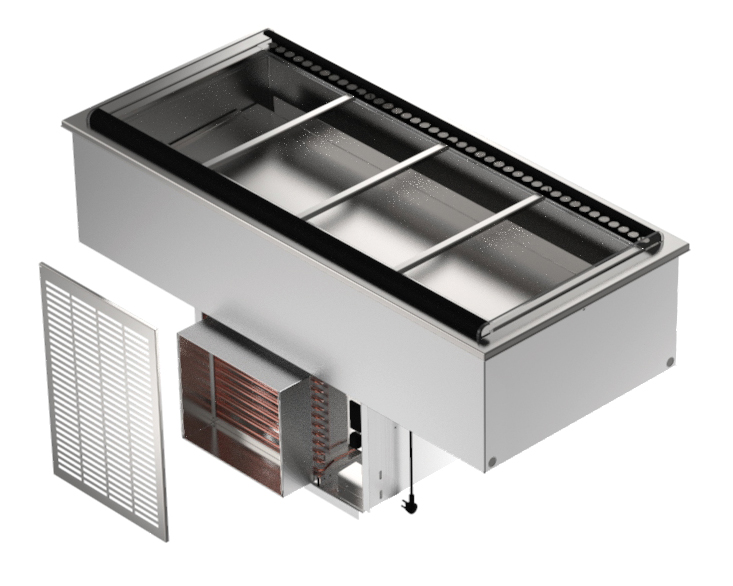

N8100-FAP

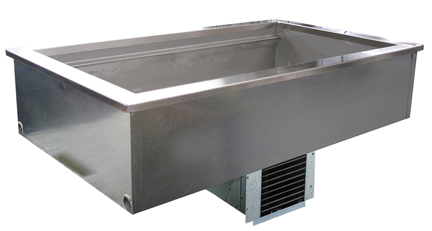

N8100NBP

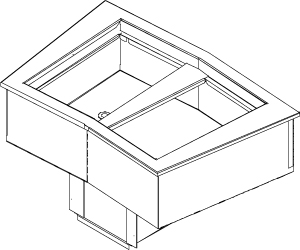

N8100-BR

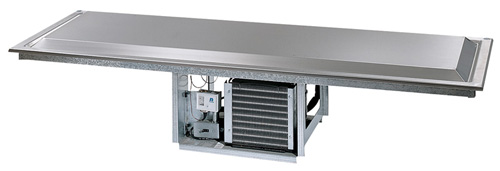

N8200

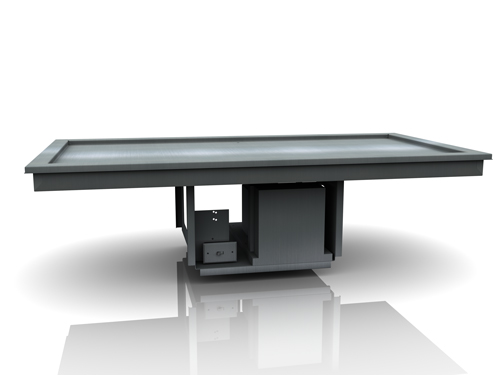

N8200-ST
